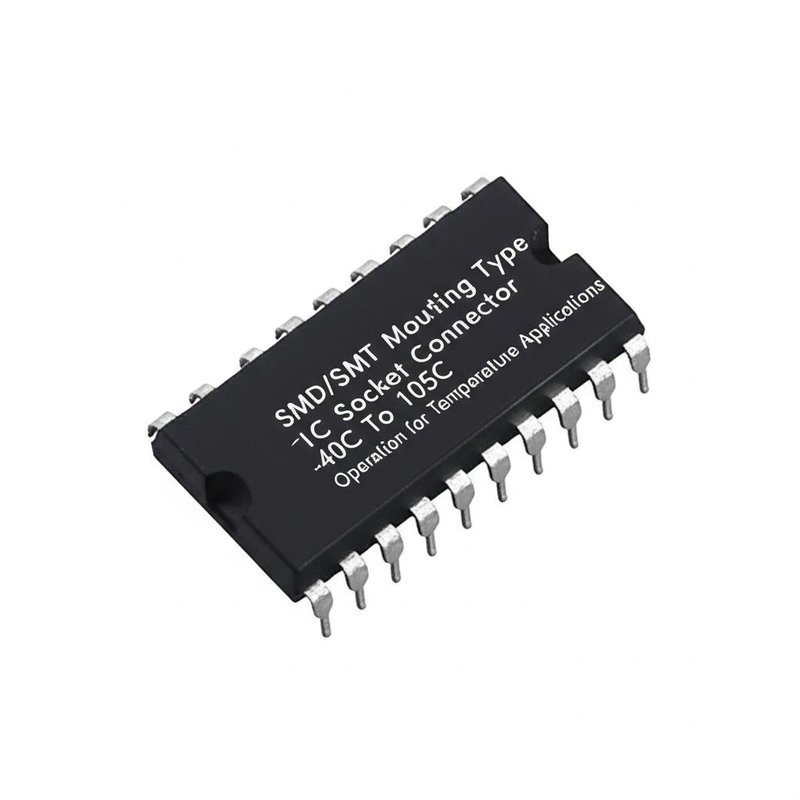

SMD/SMT Mounting Type IC Socket Connector -40C To 105C Operation for Temperature Applications

Product Description:

The PCB Header Connector is a crucial component in electronic devices and systems, providing a reliable connection between a printed circuit board (PCB) and other electronic components. This particular product is a Female Header Connector designed for Half Hole PCBs, offering exceptional performance and versatility for various applications.

With a pin availability ranging from 2 pins to 40 pins, this PCB Header Connector caters to a wide range of connection requirements, making it suitable for both simple and complex electronic setups. The connector is designed to accommodate different pin configurations, ensuring compatibility with various PCB layouts and designs.

One of the key features of this Female Header Connector is its certifications, which include UL, SGS, RoHs, and REACH. These certifications attest to the quality, safety, and compliance of the product with industry standards and regulations, giving users peace of mind regarding its reliability and performance.

The Contact Material used in this PCB Header Connector is Copper Alloy, known for its excellent conductivity, durability, and resistance to corrosion. This material ensures a stable and efficient connection between the connector and the PCB, minimizing signal loss and ensuring optimal performance of the electronic system.

Designed in a Dual Row configuration, this Female Header Connector offers a higher level of connectivity and versatility compared to single-row connectors. The dual-row design allows for more pins in a compact space, enabling more connections within the same footprint, making it ideal for applications with space constraints.

When it comes to electrical safety, the PCB Header Connector is built to withstand a voltage of up to 500V AC/DC. This Withstand Voltage rating ensures that the connector can handle high voltage levels without compromising the integrity of the connection, providing a reliable and secure electrical interface for the electronic system.

Features:

• Product Name: PCB Header Connector
• Manufacturing Location: China
• Contact Material: Copper Alloy
• Certifications: UL, SGS, RoHs, REACH
• Insulation Material: PA6T UL 94-V0
• Withstand Voltage: 500V AC/DC

Technical Parameters:

Applications:

JWY's ST127-XXXXXX PCB header connector is a versatile and reliable component that can be used in a variety of product application occasions and scenarios. With certifications including UL, SGS, RoHs, and REACH, this connector meets high industry standards for quality and safety.

Originating from China, the ST127-XXXXXX header connector has a minimum order quantity of 2Kpcs, making it suitable for both small-scale projects and large-scale productions. The price is negotiable, offering flexibility for different budget requirements. Payment terms accepted include T/T and Western Union.

With a supply ability of 100,000pcs per day and a fast delivery time of 7 to 15 working days, this connector ensures quick turnaround for production needs. The packaging details include PE, tray, tube, tape, and reel packaging options, providing convenience and protection during transportation.

The ST127-XXXXXX header connector is available in a range of pin options, from 2 pins to 40 pins, catering to various connection requirements. It features a mounting type of SMD/SMT, making it suitable for surface-mount applications.

Constructed with copper alloy contact material and square pin contact shape, this connector offers reliable electrical connections for IC socket connectors and box header connectors. Whether used in consumer electronics, industrial equipment, or automotive applications, the JWY ST127-XXXXXX header connector is a dependable choice for diverse product scenarios.

Support and Services:

The Product Technical Support and Services for the PCB Header Connector includes assistance with product installation, troubleshooting, and compatibility inquiries. Our team of experts is available to provide guidance on using the connector effectively and ensuring optimal performance. Additionally, we offer repair and replacement services for any defective connectors to ensure customer satisfaction.

Packing and Shipping:

Product Packaging:

The PCB Header Connector is carefully packaged in a protective box to ensure safe transit and delivery. Each connector is individually wrapped to prevent any damage during transportation.

Shipping Information:

Our company offers fast and reliable shipping services for the PCB Header Connector product. Orders are processed promptly and shipped using trusted carriers to deliver your items securely and on time.

FAQ:

Q: What is the brand name of the PCB Header Connector?

A: The brand name is JWY.

Q: What is the model number of the PCB Header Connector?

A: The model number is ST127-XXXXXX.

Q: What certifications does the PCB Header Connector have?

A: The PCB Header Connector is certified by UL, SGS, RoHs, and REACH.

Q: What is the minimum order quantity for the PCB Header Connector?

A: The minimum order quantity is 2Kpcs.

Q: What are the accepted payment terms for purchasing the PCB Header Connector?

A: The accepted payment terms are T/T and Western Union.
